Agent Authorization (Autonomous)

In this demo, we’ll use Agent Identity Authorization provided by Keycloak as described in details in this flow. For the draft, see Agent Auth.

← Back to index

Watch the demo

Run the components

To run this demo, please set up the prerequisites (Keycloak, Agentgateway, Jaeger).

Start the Infrastructure (Mode 3)

Use the infrastructure script to start everything with the auth-token config:

./scripts/start-infra.sh mode3

This starts agentgateway with config-policy.yaml and the aauth-service with aauth-config-mode3.yaml, which configures the supply-chain-agent resource to require auth-token. All agents bootstrap their aa-agent+jwt automatically from the Person Server on startup — no manual key or scheme flags needed.

At this point you’re ready to return to the UI to review the demo flow:

Walking through the Demo Flow

From the main UI page, if you click the "Optimize Laptop Supply Chain" button, it should kick off the flow for the backend components. You may need to refresh the page (some time the OIDC token / User session expires). if it fails, try restarting the agentgateway as that can cache JWKS and become stale.

The flow we see will look like this:

sequenceDiagram
  participant UI as UI
  participant BE as Backend
  participant SCA as Supply-Chain Agent

  UI->>BE: 1. User clicks "Optimize Laptop Supply Chain"
  BE->>SCA: 2. POST /optimize (with agent identity JWT/JWS)
  SCA-->>BE: 3. 401 Unauthorized, returns Resource Token
  BE->>SCA: 4. Retry POST /optimize with Resource Token (auth_token)
  SCA-->>BE: 5. Response: Optimization in progress/result
  BE-->>UI: 6. Return progress/result to user

When backend makes a call to supply-chain-agent, it will see a 401 and an AAuth header. This header will have the resource token which binds the needed scopes (as determined by the resource) to the agent who’s calling (backend in this case). Let’s take a look at what the backend logs look like:

INFO:aauth_interceptor:🔐 AAuth: Signing with agent token (aa-agent+jwt in Signature-Key)
INFO:aauth_interceptor:🔐 SIGNING with: method=POST, target_uri='http://supply-chain-agent.localhost:3000/'
INFO:aauth.tokens:🔐 401 from supply-chain-agent (url=http://supply-chain-agent.localhost:3000): headers={'date': 'Fri, 06 Feb 2026 22:12:49 GMT', 'server': 'uvicorn', 'aauth': 'require=auth-token; resource-token="eyJhbGciOiJFZERTQSIsImtpZCI6InN1cHBseS1jaGFpbi1hZ2VudC1lcGhlbWVyYWwtMSIsInR5cCI6InJlc291cmNlK2p3dCJ9.eyJpc3MiOiJodHRwOi8vc3VwcGx5LWNoYWluLWFnZW50LmxvY2FsaG9zdDozMDAwIiwiYXVkIjoiaHR0cDovLzEyNy4wLjAuMTo4NzY1IiwiYWdlbnQiOiJodHRwOi8vYmFja2VuZC5sb2NhbGhvc3Q6ODAwMCIsImFnZW50X2prdCI6Il9YUHA3YmZNdDV1Z25yUnFBU1VuS2JaRW5rd2JrRmpwb01GQS1lemVYS3ciLCJleHAiOjE3NzA0MTYyNzAsInNjb3BlIjoic3VwcGx5LWNoYWluOm9wdGltaXplIn0.ZAUQNnQz76zSbp4XGRyST_K5b0wVavVys5sYIUKJwLWe6LnJqN6By-37jdXDuup5c9nGak3iXw1MlaqAIdkgDQ"; auth-server="http://127.0.0.1:8765"', 'content-length': '22', 'content-type': 'text/plain; charset=utf-8'}

Here we can see that we got a 401 when backend tried to call supply-chain-agent and it also returned an AAuth header with require=auth-token and a resource token. This resource token binds a request for scopes to call this supply-chain-agent to the backend caller. The auth-server in the response is the Person Server (http://127.0.0.1:8765), which is also the Agent Server that issued the agents’ aa-agent+jwt tokens. If we decode the JWT resource token it looks like this:

{
  "iss": "http://supply-chain-agent.localhost:3000",
  "aud": "http://127.0.0.1:8765",
  "agent": "http://backend.localhost:8000",
  "agent_jkt": "_XPp7bfMt5ugnrRqASUnKbZEnkwbkFjpoMFA-ezeXKw",
  "exp": 1770416270,
  "scope": "supply-chain:optimize"
}

Please see the Authorization flow to understand these claims in more detail. To keep it short, this token proves that backend was trying to call supply-chain-agent and the scopes necessary to make this call. The aud for this is the Person Server (http://127.0.0.1:8765) — the same entity that issued the agents’ aa-agent+jwt tokens and that will exchange the resource token for an auth token.

The aauth-service at the gateway side (on behalf of supply-chain-agent) verified the incoming request by:

Decoding the aa-agent+jwt from the Signature-Key header
Fetching the Agent Server JWKS at {iss}/.well-known/aauth-agent.json to verify the JWT signature
Verifying cnf.jwk matches the key that signed the HTTP request (proof-of-possession)
Finding that access: require: auth-token is configured — issuing a 401 resource-token challenge

Further in the logs, you can see the supply-chain-agent (via aauth-service) creates a Resource token and responds with HTTP 401:

INFO:resource_token_service:✅ Resource token generated successfully
INFO:aauth.tokens:🔐 Issuing resource_token: eyJhbGciOiJFZERTQSIsImtpZCI6InN1cHBseS1jaGFpbi1hZ2VudC1lcGhlbWVyYWwtMSIsInR5cCI6InJlc291cmNlK2p3dCJ9.eyJpc3MiOiJodHRwOi8vc3VwcGx5LWNoYWluLWFnZW50LmxvY2FsaG9zdDozMDAwIiwiYXVkIjoiaHR0cDovL2xvY2FsaG9zdDo4MDgwL3JlYWxtcy9hYXV0aC10ZXN0IiwiYWdlbnQiOiJodHRwOi8vYmFja2VuZC5sb2NhbGhvc3Q6ODAwMCIsImFnZW50X2prdCI6Il9YUHA3YmZNdDV1Z25yUnFBU1VuS2JaRW5rd2JrRmpwb01GQS1lemVYS3ciLCJleHAiOjE3NzA0MTYyNzAsInNjb3BlIjoic3VwcGx5LWNoYWluOm9wdGltaXplIn0.ZAUQNnQz76zSbp4XGRyST_K5b0wVavVys5sYIUKJwLWe6LnJqN6By-37jdXDuup5c9nGak3iXw1MlaqAIdkgDQ
INFO:agent_executor:🔐 Issuing resource_token for agent: http://backend.localhost:8000
INFO:agent_executor:🔐 401 AAuth challenge: returning resource_token in AAuth response header

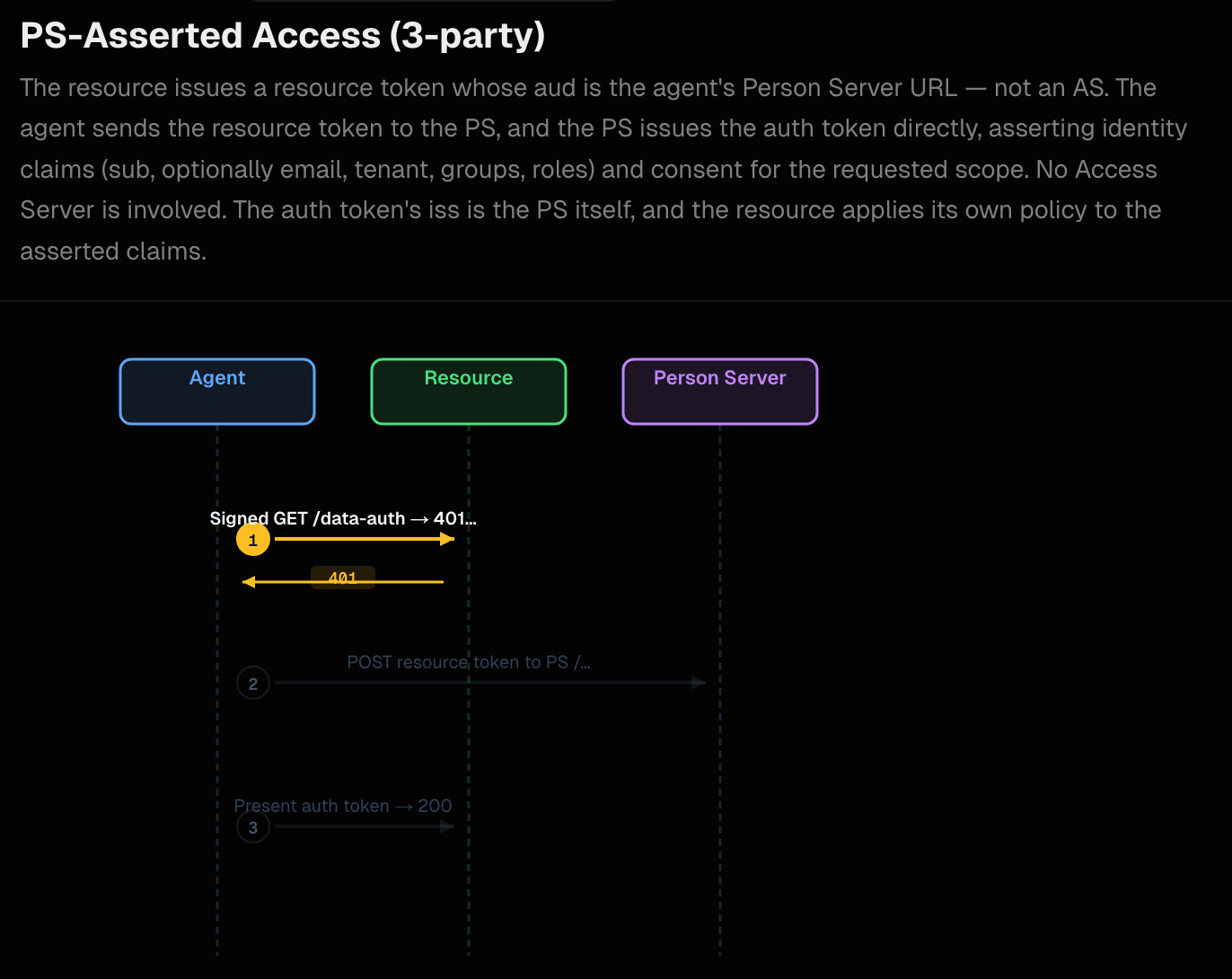

When the backend has the resource token, it presents its aa-agent+jwt (with scheme=jwt in the Signature-Key) to the Person Server token endpoint and requests an auth token:

INFO:aauth.tokens:🔐 Received auth_token from auth server: eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiYXV0aCtqd3QiLCJraWQiIDogIjF2SGZlTWk5U0E4VTdWZlNKRTN3SnVTQklOZUhVeWpOY0pzZ2tYWWNHQlkifQ.eyJleHAiOjE3NzA0MTYyNzAsImlhdCI6MTc3MDQxNTk3MCwiaXNzIjoiaHR0cDovL2xvY2FsaG9zdDo4MDgwL3JlYWxtcy9hYXV0aC10ZXN0IiwiYXVkIjoiaHR0cDovL3N1cHBseS1jaGFpbi1hZ2VudC5sb2NhbGhvc3Q6MzAwMCIsImFnZW50IjoiaHR0cDovL2JhY2tlbmQubG9jYWxob3N0OjgwMDAiLCJjbmYiOnsiandrIjp7ImtpZCI6IjFpUHZER1dzcHJYcWpSY2ZlSGtsRThWVmpEY0xKWndkZTEycW1xemN2RjAiLCJrdHkiOiJPS1AiLCJ1c2UiOiJzaWciLCJjcnYiOiJFZDI1NTE5IiwieCI6IjE3YjFaWjFhVlJSZ1VjcVA0UE94TG5mMThoa0lqU2N5T1p5NXVQX3MzUTAifX0sInNjb3BlIjoic3VwcGx5LWNoYWluOm9wdGltaXplIn0.QAcEFcaW46-TNCVEn5u5uFC-_9nXP7bFE__EkbG7gvKO66xWePUfOJALRJ7G68JX45iZNRrtm4gNTH9axWNWkoWBPTkauR8fMdX-3Hh6BcM0lKC7vBH6iLIws7hWM0d3Cmwwd3QdIkiOhydbeka3IZ0MzUi5p-PUiZp7siGLONfG2D7mbhaf00t3QNrabdaNwMd3kUniqpm3nUhb-j7d2vruxuX6cPHvIdWS6B3x3dprCH71wb97-js6IVgBsew2XLh15_BeAykA4iM_jp4YF3Rpy9hDB3SzFRN8S6frenLkAh3TRnk4Ii5fXMJEyGwuduQmP7oxn_xW4kzJvdLYVw
INFO:     127.0.0.1:55603 - "POST /optimization/start HTTP/1.1" 200 OK
INFO:     127.0.0.1:55603 - "OPTIONS /optimization/progress/5cb9b75d-b160-4142-8042-0ffa47b7a2de HTTP/1.1" 200 OK
INFO:     127.0.0.1:55603 - "GET /optimization/progress/5cb9b75d-b160-4142-8042-0ffa47b7a2de HTTP/1.1" 200 OK

The Person Server has issued us an aa-auth+jwt auth token! Let’s decode that token:

{
  "exp": 1770416270,
  "iat": 1770415970,
  "iss": "http://127.0.0.1:8765",
  "aud": "http://supply-chain-agent.localhost:3000",
  "agent": "http://backend.localhost:8000",
  "cnf": {
    "jwk": {
      "kid": "1iPvDGWsprXqjRcfeHklE8VVjDcLJZwde12qmqzcvF0",
      "kty": "OKP",
      "use": "sig",
      "crv": "Ed25519",
      "x": "17b1ZZ1aVRRgUcqP4POxLnf18hkIjScyOZy5uP_s3Q0"
    }
  },
  "scope": "supply-chain:optimize"
}

The key parts of this token (aa-auth+jwt, AAuth spec §9.4.1):

iss — the Person Server that issued this auth token (same entity that issued the aa-agent+jwt tokens)
aud — this token is scoped to the supply-chain-agent and is useless anywhere else
agent — the verified identity of the caller (matched the agent claim from the resource token)
cnf.jwk — pinned to the backend’s current ephemeral public key; only the backend can use this token because only the backend holds the matching private key

Now, when the backend calls the supply-chain-agent, it presents this aa-auth+jwt in the Signature-Key header and signs the request with its ephemeral key. The aauth-service verifies the token, confirms proof-of-possession, and forwards the request. Please see the Authorization flow for more.

Now when supply-chain-agent gets this request, with the right scheme and authorization token, it will allow the call to proceed successfully and return a result:

INFO:agent_executor:✅ AAuth signature verification successful
INFO:aauth.tokens:🔐 Received auth_token in request (HTTPSig scheme=jwt): eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiYXV0aCtqd3QiLCJraWQiIDogIjF2SGZlTWk5U0E4VTdWZlNKRTN3SnVTQklOZUhVeWpOY0pzZ2tYWWNHQlkifQ.eyJleHAiOjE3NzA0MTYyNzAsImlhdCI6MTc3MDQxNTk3MCwiaXNzIjoiaHR0cDovL2xvY2FsaG9zdDo4MDgwL3JlYWxtcy9hYXV0aC10ZXN0IiwiYXVkIjoiaHR0cDovL3N1cHBseS1jaGFpbi1hZ2VudC5sb2NhbGhvc3Q6MzAwMCIsImFnZW50IjoiaHR0cDovL2JhY2tlbmQubG9jYWxob3N0OjgwMDAiLCJjbmYiOnsiandrIjp7ImtpZCI6IjFpUHZER1dzcHJYcWpSY2ZlSGtsRThWVmpEY0xKWndkZTEycW1xemN2RjAiLCJrdHkiOiJPS1AiLCJ1c2UiOiJzaWciLCJjcnYiOiJFZDI1NTE5IiwieCI6IjE3YjFaWjFhVlJSZ1VjcVA0UE94TG5mMThoa0lqU2N5T1p5NXVQX3MzUTAifX0sInNjb3BlIjoic3VwcGx5LWNoYWluOm9wdGltaXplIn0.QAcEFcaW46-TNCVEn5u5uFC-_9nXP7bFE__EkbG7gvKO66xWePUfOJALRJ7G68JX45iZNRrtm4gNTH9axWNWkoWBPTkauR8fMdX-3Hh6BcM0lKC7vBH6iLIws7hWM0d3Cmwwd3QdIkiOhydbeka3IZ0MzUi5p-PUiZp7siGLONfG2D7mbhaf00t3QNrabdaNwMd3kUniqpm3nUhb-j7d2vruxuX6cPHvIdWS6B3x3dprCH71wb97-js6IVgBsew2XLh15_BeAykA4iM_jp4YF3Rpy9hDB3SzFRN8S6frenLkAh3TRnk4Ii5fXMJEyGwuduQmP7oxn_xW4kzJvdLYVw
INFO:agent_executor:🔐 Auth token detected in request (scheme=jwt)
INFO:httpx:HTTP Request: GET http://localhost:8080/realms/aauth-test/protocol/openid-connect/certs "HTTP/1.1 200 OK"
INFO:agent_executor:✅ Auth token verified successfully
INFO:agent_executor:✅ Authorization successful: auth_token verified for agent: http://backend.localhost:8000
INFO:agent_executor:🔐 Extracted upstream auth_token for token exchange (length: 945)
INFO:agent_executor:🔐 Using AAuth JWKS_URI signing for downstream agent calls
INFO:agent_executor:🔐 Upstream auth_token available for token exchange if needed
INFO:     127.0.0.1:55606 - "POST / HTTP/1.1" 200 OK

Tracing from Jaeger:

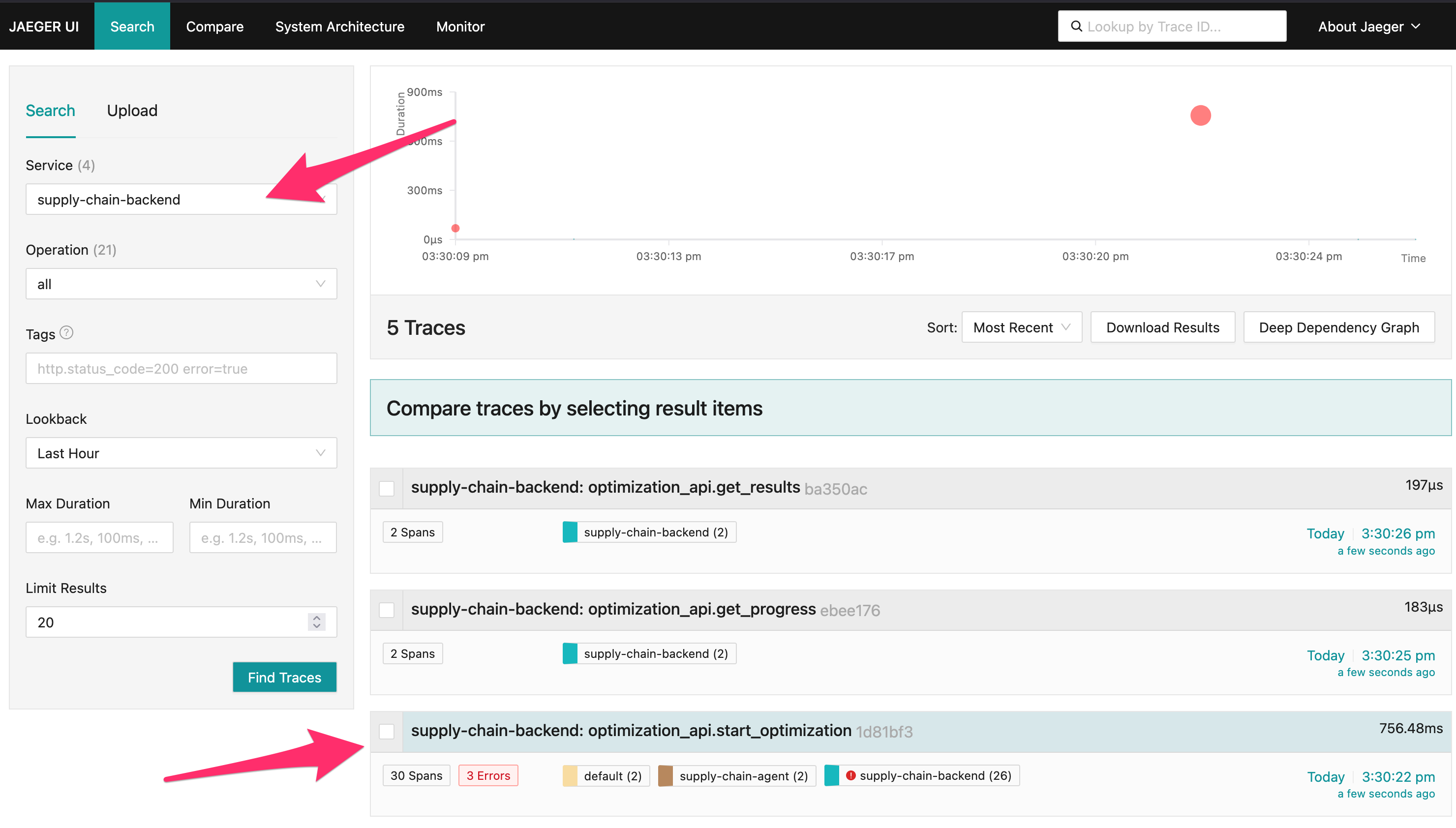

The components in this demo all participate in distributed tracing with Jaeger. We can see these same characteristics of the AAuth flow in Jaeger. With Jaeger running, navigate to http://localhost:16686. If you click on supply-chain-backend and then “Find Traces” you’ll see some of the recent traces:

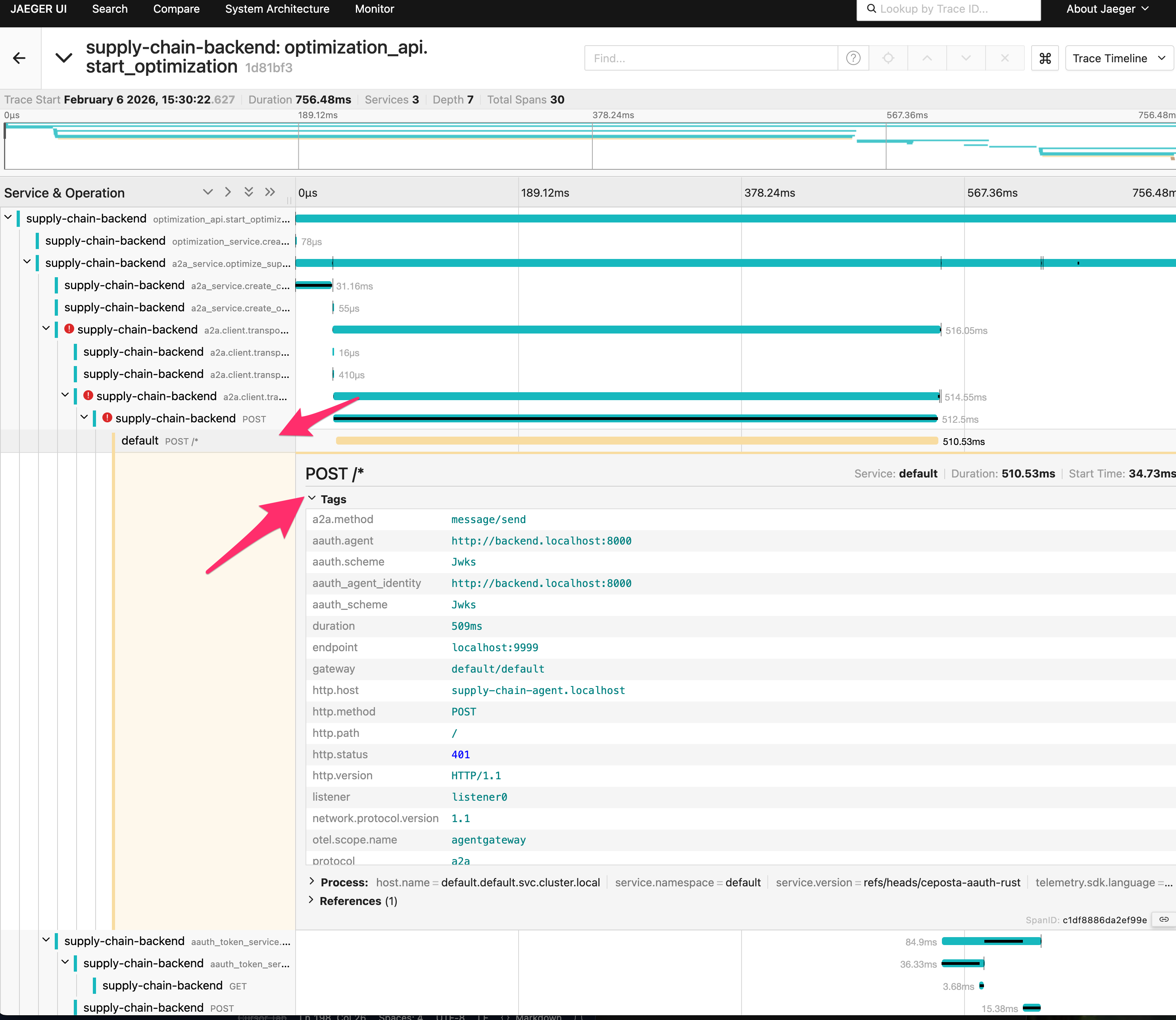

If you click a traceoptimization_api.start_optimization you’ll see the full flow. This will show the first call from backend to supply-chain-agent that fails, and how the supply-chain-agent responds.

But if you look closer at the request (scroll down to see headers), you’ll see that the request was signed with JWKS and that the supply-chain-agent responded with a Resource token.

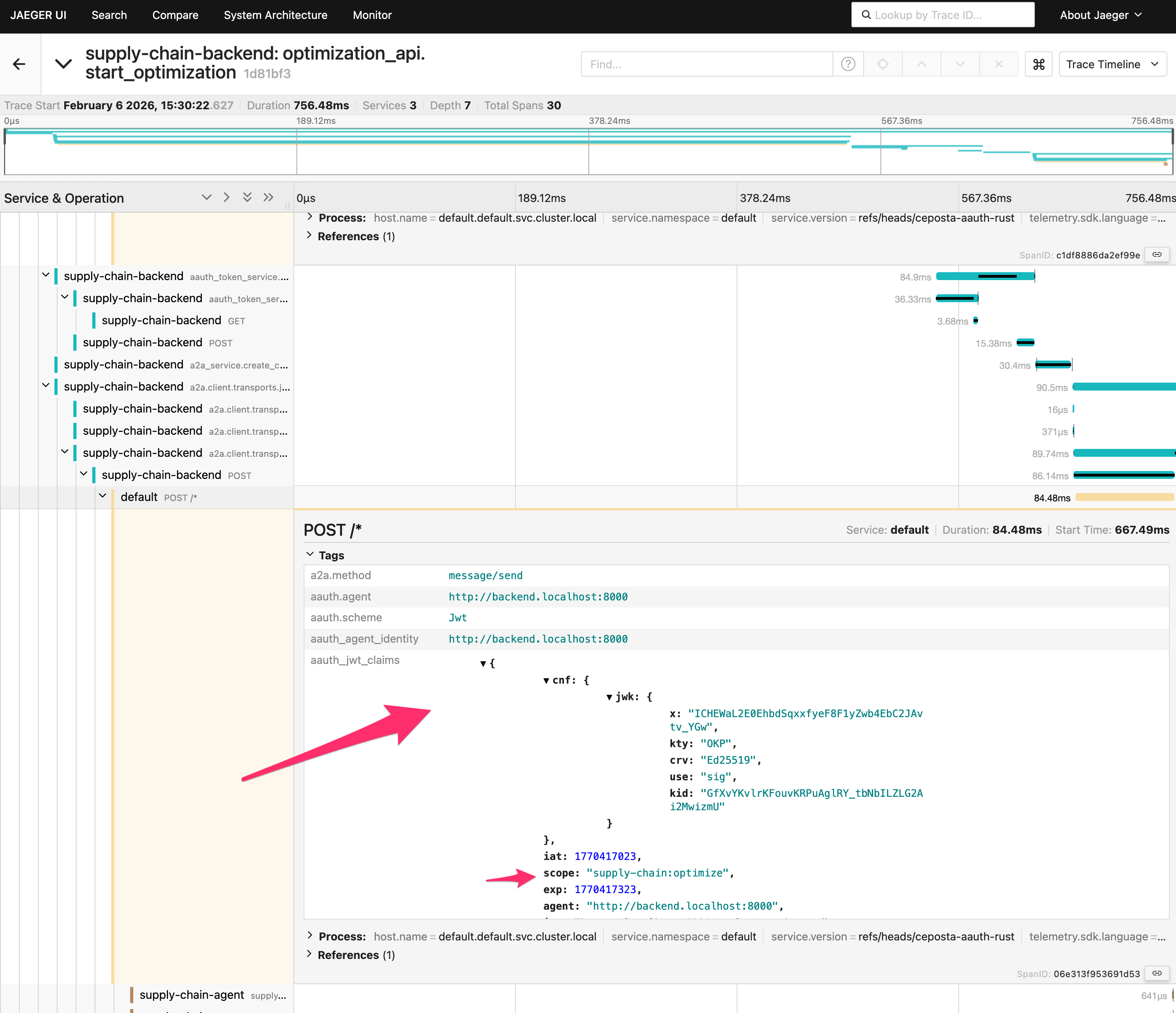

If you scroll farther down, you’ll see the call eventually succeeds with a valid JWT authorization token.

Summary: Authorization Flow Diagram

flowchart LR
    BE[Backend] -->|1. Signed request| AGW[Agentgateway] --> SCA[Supply-Chain Agent]
    SCA -->|2. 401 + resource_token| BE
    BE -->|3. Exchange for auth_token| KC[Keycloak]
    KC -->|4. auth_token| BE
    BE -->|5. Retry with auth_token| AGW --> SCA

Key: Supply-Chain Agent challenges with resource_token → Backend exchanges it at Keycloak for auth_token → Retry succeeds with JWT authorization.

Automated Testing (Mode 3)

The autonomous auth-token flow is exercised by the mode3 test suite. Start the infrastructure with the policy-enabled config and run the tests:

# Requires Keycloak and Person Server already running
./scripts/start-infra.sh mode3
./scripts/run-tests.sh mode3
./scripts/stop-infra.sh

Mode 3 uses agentgateway/config-policy.yaml and agentgateway/aauth-config-mode3.yaml. The agentgateway actively validates AAuth auth-tokens and applies CEL authorization rules before forwarding agent requests to the supply-chain-agent.

What the Tests Verify

tests/integration/test_mode3_flow.py contains six tests:

Test	What it checks
`test_mode3_optimization_flow`	Full start → poll → results with auth-token exchange
`test_mode3_market_analysis`	`"perform market analysis"` triggers SCA → MAA call with auth-token
`test_mode3_invalid_token_rejected`	`Authorization: Bearer invalid-token` returns 401/403 at the backend
`test_mode3_no_auth_header_rejected`	Missing `Authorization` header returns 401/403
`test_mode3_agent_health`	Supply-chain-agent `.well-known` endpoint is reachable
`test_mode3_extended_flow`	`"supply chain analysis with market insights"` exercises the SCA→MAA agent-to-agent path

Expected Output

tests/integration/test_mode3_flow.py::test_mode3_optimization_flow PASSED
tests/integration/test_mode3_flow.py::test_mode3_market_analysis PASSED
tests/integration/test_mode3_flow.py::test_mode3_invalid_token_rejected PASSED
tests/integration/test_mode3_flow.py::test_mode3_no_auth_header_rejected PASSED
tests/integration/test_mode3_flow.py::test_mode3_agent_health PASSED
tests/integration/test_mode3_flow.py::test_mode3_extended_flow PASSED
============================== 6 passed in XX.XXs ==============================

Security Tests in Detail

test_mode3_invalid_token_rejected proves the backend enforces Keycloak authentication before any agent call is made:

response = requests.post(
    f"{backend_url}/optimization/start",
    headers={"Authorization": "Bearer invalid-token"},
    json={"prompt": "test"},
)
assert response.status_code in [401, 403]

test_mode3_no_auth_header_rejected confirms unauthenticated requests are rejected at the backend boundary — the AAuth flow never even starts:

response = requests.post(
    f"{backend_url}/optimization/start",
    json={"prompt": "test"},   # no Authorization header
)
assert response.status_code in [401, 403]

These two tests together prove the layered security model: OIDC at the backend boundary, AAuth at the agent-to-agent boundary.

What Agentgateway Logs in Mode 3

When a request passes with a valid auth-token, agentgateway logs the AAuth metadata:

info request aauth.scheme=Jwt aauth.agent=http://backend.localhost:8000
     token_audience=http://supply-chain-agent.localhost:3000 authenticated=false
     http.method=POST http.status=200 duration=145ms

When the CEL policy blocks an unauthorized agent, you see:

info request aauth.scheme=Jwks aauth.agent=http://unknown-agent.localhost
     http.status=403 authorization_denied=true

In the next post, we’ll look at how AAuth authorization works when it requires User consent in this demo! Specifically, how do we tie the OIDC login to a user-consent needed by the AAuth protocol? Head to the next section
