Exploring AAuth for Agent Identity and Access Management

Agent Auth (AAuth – pronounced “AY-awth”) is an IETF draft paper, part of the OAuth working group, that specifies a protocol for agent identity and access management from Dick Hardt who authored OAuth 2.0 and co-author of OAuth 2.1.

Watch the demo

Intro: Digging in to AAuth Flows

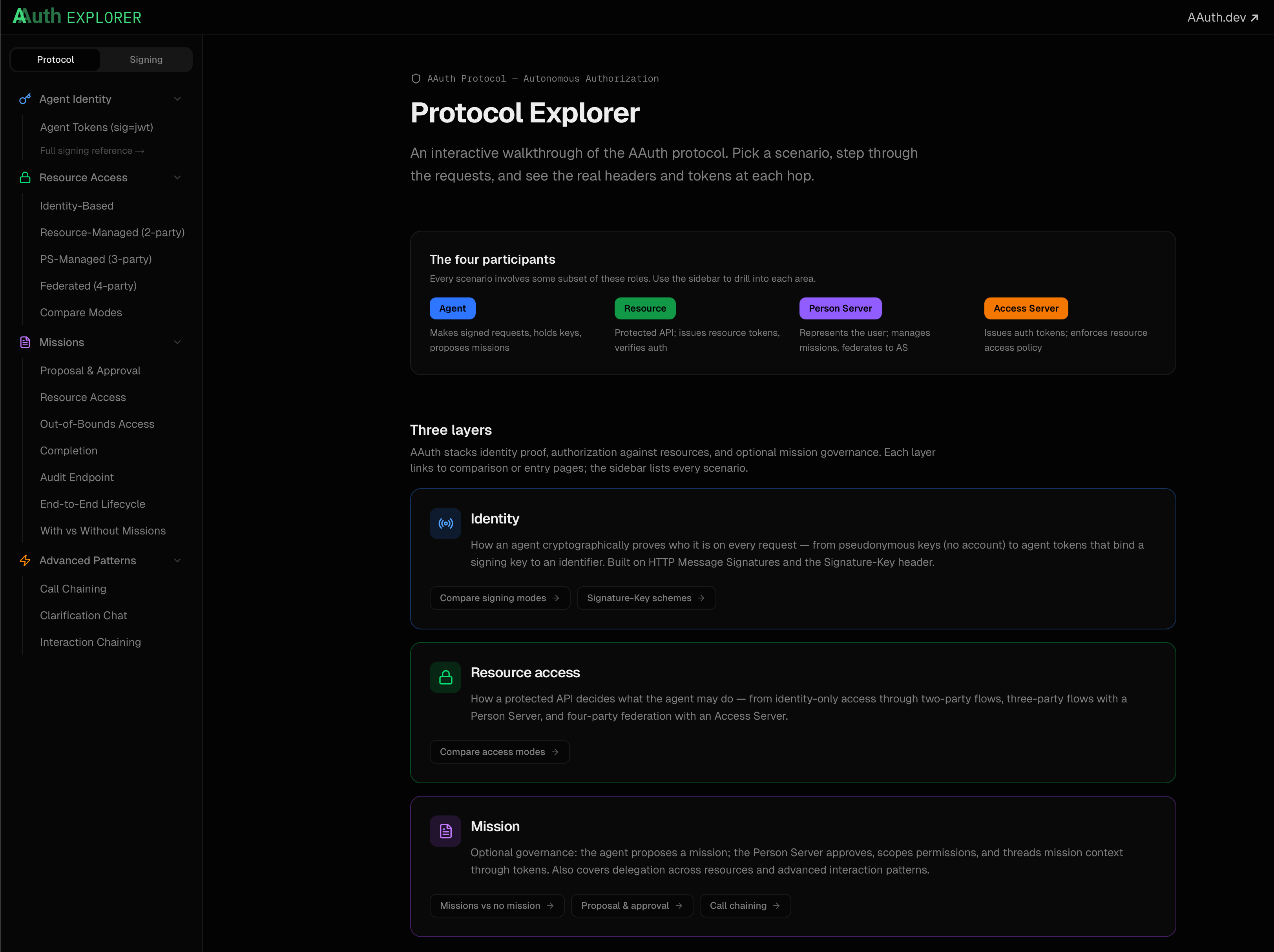

If you want a step by step guide through the AAuth protocol, I recommend you take a look at the AAuth Protocol Explorer. The explorer walks you through, in detail with all requests/responses/tokens, etc, all of the resource access flows.

🎉 Full Working Demo with Agent Bootstrap, Person Server, and Agentgateway

AAuth is best understood with working code.

This set of resources walks you through set up and evaluation of a realistic AAuth implementation with Agent Identity, Authorization, and Person Server attested flows. We leverage the Python AAuth Library, Agentgateway, and an AAuth resource proxy to turn ANY resource into an AAuth resource.

The source code for this demo can be found in GitHub: https://github.com/christian-posta/aauth-full-demo.

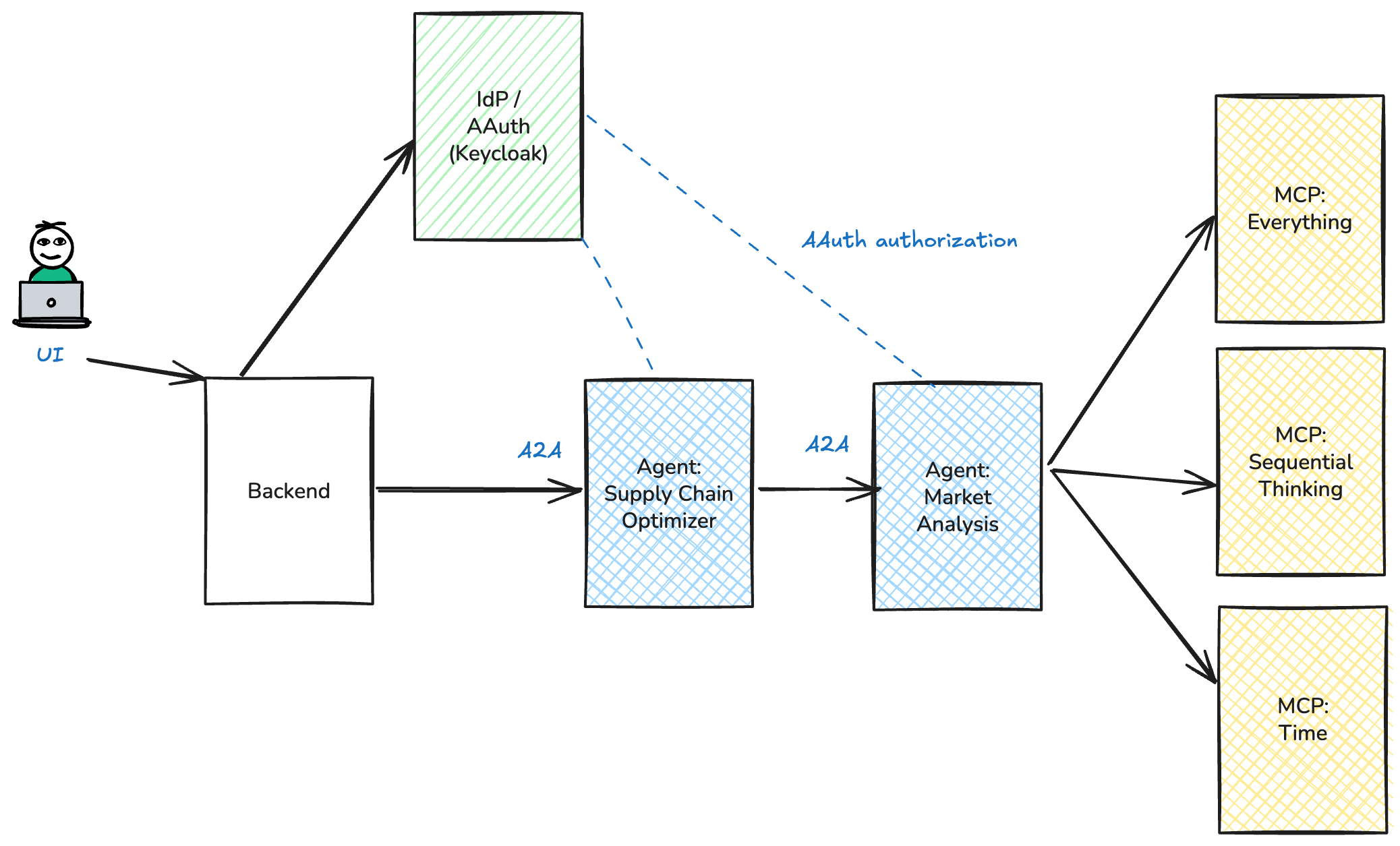

This demo covers two resource access modes. A resource in AAuth is the target service (API, MCP server, another AI agent, etc) that is being accessed. The first resource access mode we cover is “Identity Based”. Basically an AI agent calls a resource and asserts its identity with a non-bearer JWT aa-agent+jwt issued by an Agent Provider. The resource verifies the agent’s aa-agent+jwt and applies local policy; no 401 challenge and no auth token required. In the spec this is Identity Based resource access. The second mode we’ll dig into (PS-managed / three-party) is where the resource issues a 401 challenge with an aa-resource+jwt token; the agent exchanges this token at its Person Server for an aa-auth+jwt auth token and retries. In the spec this is 3-Party resource access.

Agent identity in both modes comes from an aa-agent+jwt bootstrapped from the Person Server at startup. See aa-agent+jwt token issuance. Our implementation deviates slightly (allowed within the spec: bootstrap is non-normative).

Following these steps is the best way to see AAuth working end to end:

AAuth Implementation Resources

The following open-source components are used in this demo:

Agentgateway — LLM / MCP / A2A gateway used as the AAuth identity verification and policy enforcement point (PEP) (any version should work, tested on v1.1.0).
ExtAuthz AAuth Resource (aauth-service) — Envoy ExtAuthz service that turns any HTTP / MCP / A2A resource into an AAuth resource (demo-tested release: v0.0.1).
Python AAuth Library (aauth) — request signing, key generation, and token helpers used by the Python agents and the backend (pinned as aauth>=0.3.4).
Go AAuth Library — Go implementation of AAuth signing and verification; consumed by aauth-service (the extauth-aauth-resource below) to validate agent tokens and proof-of-possession.
AAuth Person Server — demo Person Server that also acts as the Agent Provider: issues aa-agent+jwt, manages user consent, and issues aa-auth+jwt.
Demo source code — this repository, including the supply-chain and market-analysis agents, backend, scripts, and Agentgateway configs.
