Agent Identity with aa-agent+jwt

In this demo, we establish Agent Identity using aa-agent+jwt tokens: a short-lived JWT issued by an Agent Server that cryptographically binds the agent’s signing key to its identity. This replaces pseudonymous or static JWKS-based identity with a two-layer key model that includes key rotation, proof-of-possession, and a verifiable issuer chain. See the AAuth spec §5.2 for the normative definition.

← Back to index

Watch the demo

Bootstrap: How Agents Acquire an Agent Token

Before any AAuth protocol flow begins, each agent must obtain an aa-agent+jwt token from its Agent Server. In this demo the Person Server (http://127.0.0.1:8765) acts as the Agent Server. This happens automatically on startup.

The Two-Key Model

Each agent maintains two key layers:

Key	Lifetime	Purpose
Stable key (`supply-chain-stable.key`)	Permanent — persisted to disk	Long-term identity anchor. Signs delegation JWTs for token refresh. Never leaves the agent.
Ephemeral key	Rotated on each token refresh	Active signing key for HTTP Message Signatures. Its public half is embedded in the agent token via `cnf.jwk`.

The ephemeral key is what signs individual HTTP requests. The stable key establishes continuity of identity across token renewals without requiring the user to re-approve.

Bootstrap Sequence

Agent startup
     │
     ├─ 1. load_or_create_stable_identity()
     │      ↳ loads supply-chain-stable.key/pub  (or generates new pair on first run)
     │
     ├─ 2. generate_ed25519_keypair()  → ephemeral keypair
     │
     ├─ 3. GET http://127.0.0.1:8765/.well-known/aauth-agent.json
     │      ↳ discovers registration_endpoint, refresh_endpoint, issuer
     │
     ├─ 4. POST /register   (signed with ephemeral HWK)
     │      body: { stable_pub: <JWK>, agent_name: "Supply Chain Optimizer Agent" }
     │
     │      if 200 → receive aa-agent+jwt immediately
     │      if 202 → poll Location URL until approved, then receive aa-agent+jwt
     │
     └─ 5. Verify cnf.jwk in token matches ephemeral public key

On startup you’ll see:

Ephemeral signing key (startup): {"crv":"Ed25519","kty":"OKP","x":"<base64>"}
Agent Server discovery OK: issuer=http://127.0.0.1:8765 register=http://127.0.0.1:8765/register refresh=http://127.0.0.1:8765/refresh
Agent Server registration complete; agent token acquired
aa-agent+jwt claims (startup):
{
  "cnf": {
    "jwk": {
      "crv": "Ed25519",
      "kty": "OKP",
      "x": "<ephemeral-public-key-base64>"
    }
  },
  "exp": 1770416270,
  "iat": 1770412670,
  "iss": "http://127.0.0.1:8765",
  "sub": "urn:jkt:sha-256:<stable-key-thumbprint>"
}

The `aa-agent+jwt` Token Structure

The spec defines the required structure (AAuth §5.2.2):

{
  "iss": "http://127.0.0.1:8765",
  "sub": "urn:jkt:sha-256:<stable-key-JWK-thumbprint>",
  "iat": 1770412670,
  "exp": 1770416270,
  "cnf": {
    "jwk": {
      "kty": "OKP",
      "crv": "Ed25519",
      "x": "<ephemeral-public-key>"
    }
  }
}

Key claims:

iss — the Agent Server that issued this token (the Person Server in this demo)
sub — a stable urn:jkt:sha-256:… identifier derived from the stable public key JWK thumbprint; stable across token refreshes
cnf.jwk — the active ephemeral public key; must match the key used to sign each HTTP request (proof-of-possession)
exp — short-lived (typically 1 hour); the stable key enables silent renewal

Token Refresh (without re-approval)

When the token is near expiry the agent renews it silently: the stable key signs a short-lived delegation JWT (typ: jkt-s256+jwt) whose cnf.jwk points to a new ephemeral key. This delegation JWT is sent to POST /refresh. The Agent Server verifies the stable-key signature and issues a fresh aa-agent+jwt for the new ephemeral key — no user interaction needed.

Run the Components

To run this demo, please set up the prerequisites (Keycloak, Agentgateway, Person Server).

Start all services with the identity-only config (Mode 1):

./scripts/start-infra.sh mode1

Or start individual services manually if you want to explore each one:

Component	Port	Command
Keycloak	8080	`./bin/kc.sh start-dev --bootstrap-admin-username=admin --bootstrap-admin-password=admin`
Person Server (Agent Server)	8765	`cd ~/python/aauth-person-server && ./run-server.sh`
Agentgateway	3000	`agentgateway -f agentgateway/config.yaml`
aauth-service	7070/8081	`./agentgateway/run-aauth-extauth.sh`
Backend	8000	`cd backend && .venv/bin/python run_server.py`
Supply-chain-agent	9999	`cd supply-chain-agent && .venv/bin/python __main__.py`
Market-analysis-agent	9998	`cd market-analysis-agent && .venv/bin/python __main__.py`

Each Python service calls AgentTokenService.startup() during its lifespan and registers with the Person Server automatically. Check AGENT_SERVER_BASE in each service’s .env (defaults to http://127.0.0.1:8765).

Walking through the Demo Flow

Once bootstrapped, when the backend calls the supply-chain-agent, it signs the HTTP request with its ephemeral key and presents its aa-agent+jwt in the Signature-Key header:

Signature-Key: sig=jwt; jwt="eyJhbGciOiJFZERTQSIsInR5cCI6ImFhLWFnZW50K2p3dCJ9..."
Signature-Input: sig=("@method" "@authority" "@path" "signature-key" "content-digest");created=1770415970
Signature: sig=:...EdDSA-signature-over-the-above...:

The flow:

sequenceDiagram
  participant UI as UI / Test
  participant BE as Backend
  participant AGW as Agentgateway
  participant SCA as Supply-Chain Agent

  UI->>BE: 1. POST /optimization/start (OIDC Bearer token)
  BE->>AGW: 2. POST / (Signature-Key: aa-agent+jwt, Signature: PoP)
  AGW->>AGW: 3. Verify JWT typ=aa-agent+jwt, verify cnf.jwk PoP
  AGW->>SCA: 4. Forward request
  SCA-->>BE: 5. 200 OK — agent identity verified
  BE-->>UI: 6. Return progress/result

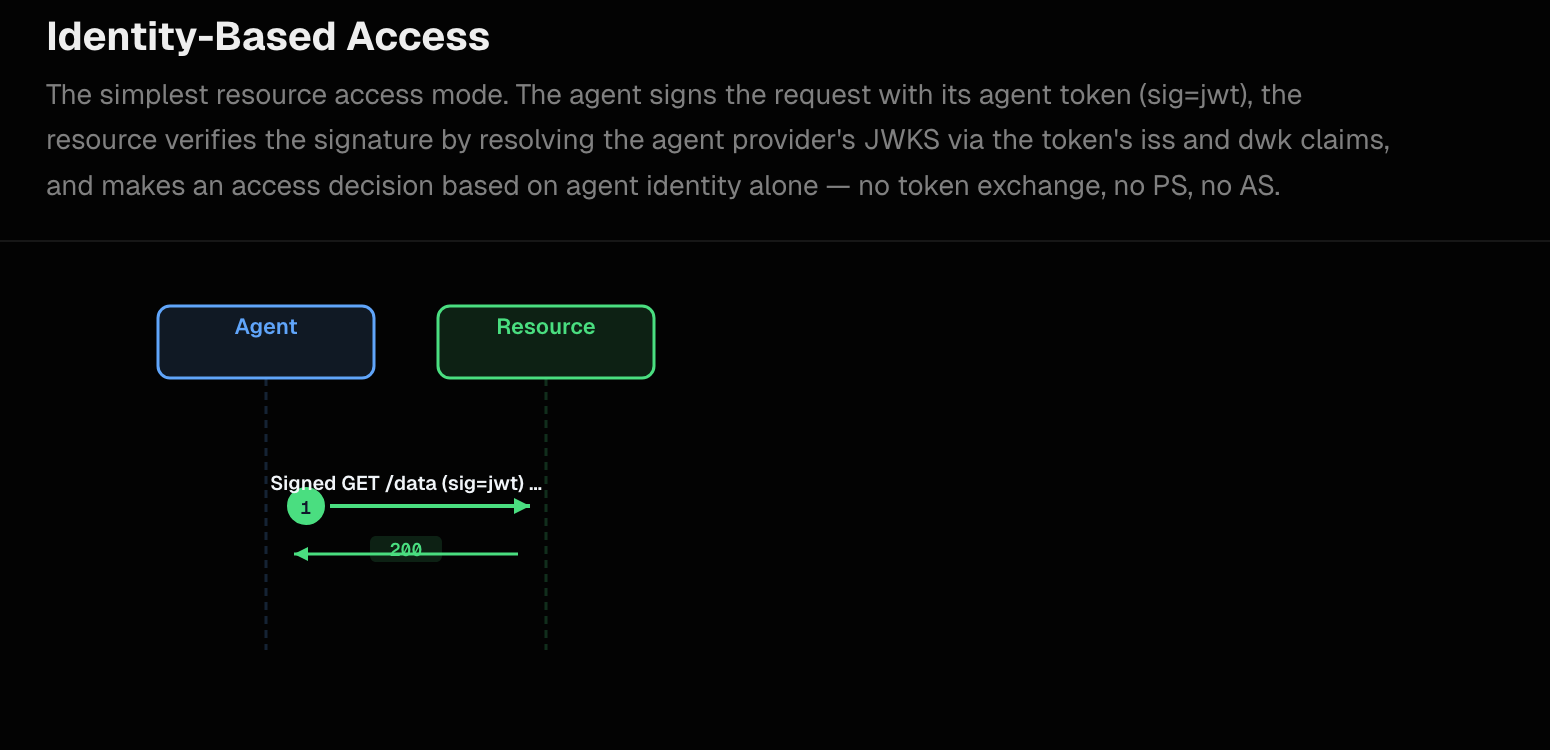

In Mode 1 (identity-based access, AAuth spec §4.1.1) the aauth-service accepts the aa-agent+jwt directly — no 401 resource-token challenge, no Person Server exchange. The agentgateway config (aauth-config.yaml) makes this explicit:

allowed_signature_key_schemes:
  - jwt
allowed_jwt_types:
  - aa-agent+jwt   # only agent identity token; aa-auth+jwt never needed
# No access: section → resource never issues a 401 resource-token challenge

Backend Logs

When backend makes a call, the signing interceptor logs:

INFO:aauth_interceptor:🔐 AAuth: Signing with agent token (aa-agent+jwt in Signature-Key)
INFO:aauth_interceptor:🔐 SIGNING with: method=POST, target_uri='http://supply-chain-agent.localhost:3000/'

Supply-chain-agent Logs

The resource side (via aauth-service) verifies the aa-agent+jwt:

INFO:     127.0.0.1:54969 - "GET /.well-known/aauth-agent.json HTTP/1.1" 200 OK
INFO:     127.0.0.1:54965 - "POST /optimization/start HTTP/1.1" 200 OK

The aauth-service:

Decodes the aa-agent+jwt from Signature-Key
Fetches the Agent Server’s JWKS at {iss}/.well-known/aauth-agent.json to verify the JWT signature
Confirms typ: aa-agent+jwt
Verifies that the key used to sign the HTTP request matches cnf.jwk in the token (proof-of-possession)
Applies the configured policy — in Mode 1, default policy accepts any identified agent

Agentgateway Access Logs

Agentgateway enriches the access log with AAuth metadata:

info request gateway=default/default listener=listener0 route=default/route0
     endpoint=localhost:9999 src.addr=127.0.0.1:54966
     http.method=POST http.host=supply-chain-agent.localhost http.path=/
     http.status=200 duration=117ms
     aauth.scheme=Jwt
     aauth.agent=http://backend.localhost:8000
     sig_key="sig1=(scheme=jwt typ=\"aa-agent+jwt\" sub=\"urn:jkt:sha-256:...\")"

The aauth.scheme=Jwt field (type aa-agent+jwt) and aauth.agent (the verified agent identity URL) are available for use in authorization CEL rules.

Market analysis requests that include "perform market analysis" also trigger the supply-chain-agent → market-analysis-agent call. Both hops use aa-agent+jwt signing. Check logs/supply-chain-agent.log and logs/market-analysis-agent.log to see the same bootstrap and verification pattern on the downstream hop.

Summary: End-to-End Flow Diagram

flowchart LR
    PS[Person Server\nAgent Server :8765] -->|aa-agent+jwt| BE[Backend :8000]
    PS -->|aa-agent+jwt| SCA[Supply-Chain Agent :9999]
    BE -->|Signature-Key: aa-agent+jwt\n+ PoP signature| AGW[Agentgateway :3000]
    AGW -->|verify JWT + PoP| SCA

Key: Each agent bootstraps an aa-agent+jwt from the Person Server → presents it in Signature-Key → Agentgateway verifies the JWT and proof-of-possession → forwards to the resource.

Automated Testing (Mode 1)

The identity-only flow is exercised by the mode1 test suite:

./scripts/start-infra.sh mode1
./scripts/run-tests.sh mode1
./scripts/stop-infra.sh

What the Tests Verify

tests/integration/test_mode1_flow.py (5 tests):

Test	What it checks
`test_supply_chain_optimization_flow`	Start → poll → results completes with `status=completed`
`test_market_analysis_request`	`"perform market analysis"` prompt triggers market-analysis-agent call
`test_empty_request_prompt`	Empty prompt is accepted and returns a `request_id`
`test_multiple_concurrent_requests`	Three simultaneous optimization requests all complete
`test_mode1_no_user_interaction`	Confirms `interaction_required` is never set (identity-only mode needs no consent)

tests/integration/test_health.py (9 tests) runs first and confirms all services — including the Person Server that issued the aa-agent+jwt tokens — are reachable before the flow tests run.

In the next post, we’ll look at how the AAuth authorization flow works — where agents need more than identity and must obtain an auth token.
