AAuth with Agentgateway and Person Server
To prove out some of the AAuth patterns, I have implemented AAuth’s Person Server which is used to bind a Person’s authority to an agent and manage delegation. The Person Server also plays the role of an Agent Provider which can issue agent tokens (agent identity). Agentgateway is an LLM/MCP/A2A gateway that can be used to implement AAuth signature verification and resource-token/401 flows. Since it performs the role of agent gateway, it can log all requests them, send them to distributed tracing engines, and ultimately apply agent-based identity traffic and security policy.
This guide will walk you through setup of Person Server and Agentgateway so we can dig in for the rest of the demo.
AAuth Person Server / Agent Provider
I have built a demo “Person Server” for this demo which also acts as the Agent Provider. Please review the IETF AAuth draft for more about these concepts. In short, the Person Server represents the “Person” (ie, legal person, organization, etc) that has comissioned the AI agent. It owns thing like the agent’s mission, authorization grants, and can confer with the “person” on any new grants/authorization decisions. The PS can also federate with an AAuth Access Server (AS), but that is out of scope for this demo.
In this demo, the Person Server app also plays the role of the Agent Provider. The Agent Provider is what owns the long-term signing keys and is responsible for attesting/issuing agent identity. In this demo, although they are spearate AAuth components, I’ve combined them (although technically the code under the covers is actually separate).
The right configuration for running this PS/AP is in the run-server.sh script:
~ git clone https://github.com/christian-posta/aauth-person-server.git
~ cd aauth-person-server
~ uv sync
~ ./run-server.sh
INFO: Started server process [52317]
INFO: Waiting for application startup.
INFO: Application startup complete.
INFO: Uvicorn running on http://127.0.0.1:8765 (Press CTRL+C to quit)

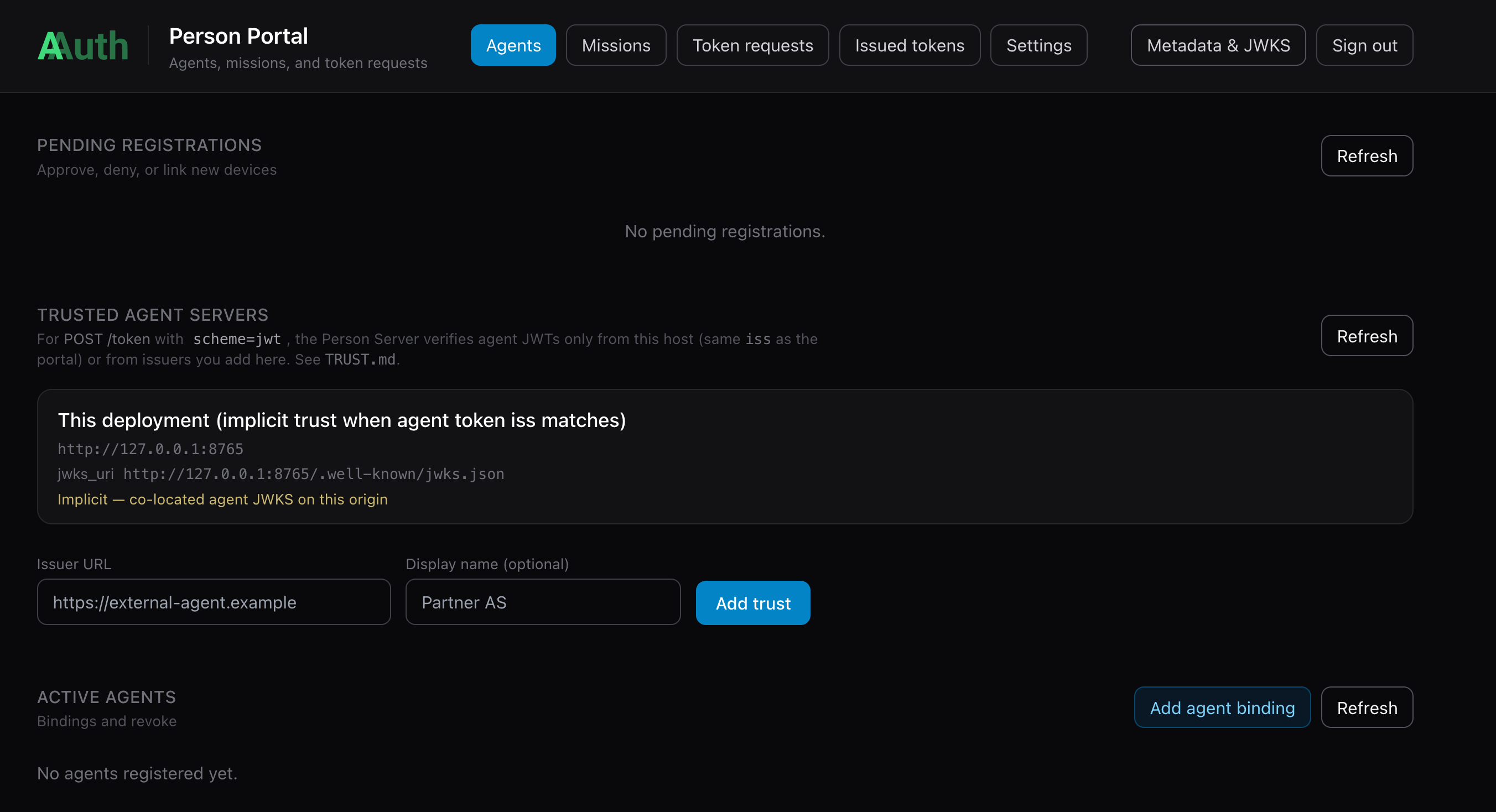

At this point you can navigate to http://127.0.0.1:8765/ui
When prompted, enter the following value for the token: mytoken
AAuth Agent Bootstrap
When one of the agents starts up (in next section), it will connect with the PS/AP and try to register its keys. The bootstrap requires person approval. Once approved, agents will receive their aa-agent+jwt agent identity token bound to their ephemeral private key. Future renewal/re-registrations won’t require a person approval (once approved).
AAuth with Agentgateway
Agentgateway is an opensource LLM, MCP, and A2A gateway hosted as part of the Linux Foundation. It focuses on implementing the missing pieces not found in traditional API gateways to support MCP and Agent workloads. The project emphasizes enterprise-grade security, observability, resiliency, reliability, and multi-tenancy features. Agentgateway is built to be the most performant, reliable, and mature LLM/MCP gateway on the market.
I have built an extension to Agentgateway that implements AAuth for a resource (API, MCP, etc). The extension plugs into any Agentgateway version and uses the ExtAuthz protocol. This extension could be used for any proxy that supports ExtAuthz including Envoy and Istio.
To get started with Agentgateway for this AAuth demo, you can follow the getting started guide and run it with the agentgateway configuration from this demo repo.
# Download Agentgateway binary (for macOS amd64) and rename to 'agentgateway'
curl -sL https://agentgateway.dev/install | bash
agentgateway --version
Now you can run agentgateway with configurations for this demo.
cd aauth-full-demo
agentgateway -f ./agentgateway/config.yaml
...
2026-05-13T19:24:33.553438Z info management::hyper_helpers listener established address=[::]:15021 component="readiness"
2026-05-13T19:24:33.559522Z info state_manager Watching config file: config.yaml
2026-05-13T19:24:33.560965Z info state_manager loaded config from File("config.yaml")
2026-05-13T19:24:33.561318Z info agent_core::readiness Task 'agentgateway' complete (11.209712ms), still awaiting 1 tasks
2026-05-13T19:24:33.561329Z info management::hyper_helpers listener established address=127.0.0.1:15000 component="admin"
2026-05-13T19:24:33.561386Z info management::hyper_helpers listener established address=[::]:15020 component="stats"
2026-05-13T19:24:33.561430Z info agent_core::readiness Task 'state manager' complete (11.322604ms), marking server ready
2026-05-13T19:24:33.561428Z info proxy::gateway started bind bind="bind/3000"
This configuration will rely on local routing by hostname. You can add this to your /etc/hosts:
127.0.0.1 backend.localhost
127.0.0.1 supply-chain-agent.localhost
127.0.0.1 market-analysis-agent.localhost
Install Agentgateway AAuth extension
The gateway configs in this repo send ExtAuthz checks to the AAuth resource service over gRPC (localhost:7070) and proxy AAuth HTTP metadata (JWKS, resource discovery) to HTTP (localhost:8081). That process is the aauth-service binary from extauth-aauth-resource (Envoy ExtAuthz).
1. Download a release build (pick the archive that matches your OS and CPU; current demo-tested tag is v0.0.1):
| Platform | Asset |
|---|---|
| macOS Apple Silicon | extauth-aauth-resource_0.0.1_darwin_arm64.tar.gz |
| macOS Intel | extauth-aauth-resource_0.0.1_darwin_amd64.tar.gz |
| Linux x86_64 | extauth-aauth-resource_0.0.1_linux_amd64.tar.gz |
| Linux arm64 | extauth-aauth-resource_0.0.1_linux_arm64.tar.gz |
Example (macOS arm64):
mkdir -p ~/bin/extauth-aauth-resource && cd ~/bin/extauth-aauth-resource
curl -sLO https://github.com/christian-posta/extauth-aauth-resource/releases/download/v0.0.1/extauth-aauth-resource_0.0.1_darwin_arm64.tar.gz
tar xzf extauth-aauth-resource_0.0.1_darwin_arm64.tar.gz
chmod +x aauth-service
The archive also includes sign-request and agent-client helpers; only aauth-service is required for Agentgateway.
2. Run aauth-service from the demo’s agentgateway/ directory so it picks up resource_key.pem and the policy YAML on disk. Use the binary you extracted (adjust the path if yours differs) and aauth-config.yaml, which pairs with config.yaml:
cd aauth-full-demo/agentgateway
AAUTH_CONFIG=aauth-config.yaml "$HOME/bin/extauth-aauth-resource/aauth-service"
You should see listeners on 7070 (gRPC ExtAuthz) and 8081 (HTTP). Quick check: curl -sf http://localhost:8081/health (or use nc -z 127.0.0.1 8081 and 7070 as the test harness does).
3. Run Agentgateway with the matching gateway config (previous section), in a separate terminal from aauth-service, so extAuthz can reach localhost:7070. If you already started Agentgateway from the snippet above, leave it running as long as aauth-service is also up; for a clean order next time, start aauth-service first, then the gateway.
For a full local stack (agents, backend, correct configs per mode) without wiring this by hand, use the harness described in TEST.md (repo root): ./scripts/start-infra.sh mode1 (or mode3, user-consent) starts agentgateway, aauth-service, and the Python services; ./scripts/stop-infra.sh tears them down.
AAuth with Jaeger Distributed Tracing
The Agentgateway (and the agents in this demo) is configured to send tracing spans to http://localhost:4317. We can see the full token AAuth token flow in Jaeger. We can start Jaeger with the following:
./agentgateway/run-jaeger.sh
At this point we can proceed with the demo.
Important — Person Server as AAuth Agent Provider: The Person Server (
http://127.0.0.1:8765) plays a dual role in this demo. It is the AAuth Agent Provider that issuesaa-agent+jwttokens to each agent at startup, AND it is the Person Server that manages user consent and issuesaa-auth+jwtauth tokens. Keycloak is used for OIDC authentication of the human user (mcp-user) in the UI, but the AAuth token chain runs entirely through the Person Server. Make sure it is running before starting any other service.
